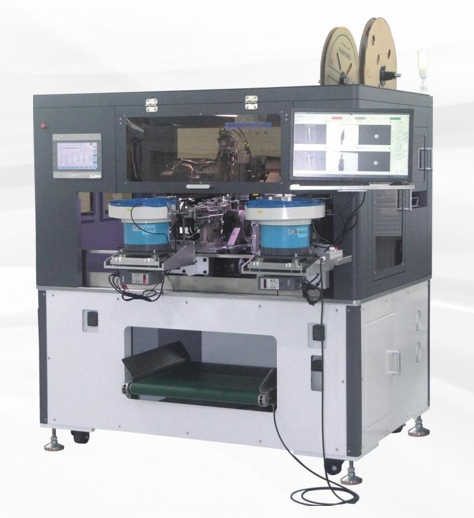

※ Suitable for single-layer, double-layer and multi-layer plastic shells.

※ Shell feeding method: Vibration disc feeding (standard machine), robot feeding or manual feeding options are available.

※ The equipment is equipped with a protective cover and a connection interface for MES.

※ The equipment can distinguish defective products.

※ The insertion mode is single-wire insertion mode, and it is equipped with a retraction detection system for simultaneous insertion.

※ The machine switching is convenient. The system can save the machine adjustment parameters of the product, such as the type of wires, terminals, molds, and rubber shells used, as well as the connection position of the product. During re-production, the files can be directly called up, saving the switching time.

※ The equipment is equipped with CCD visual inspection function.

※ The equipment is equipped with a pressure management device.

※ The cross-insertion shell processing mode can be selected from among the various processing modes.

Parameters

Power supply:AC 220V/50/60Hz（one phase）

Pressure force:5-6 kgf (requires clean air)

Function:Fixed-length cutting, one/two sides semi-peeling, full peeling, one/two-sides crimping, pressure detection, cross-insertion of plug housing, pull-back test

Wire color:Corresponding to 10 colors (same specifications)

Quality detection:Inspection of the presence or absence of wires, terminals, the quantity of CCD copper wires, the appearance inspection of CCD terminals, the inspection of terminal pressure, and the inspection of terminal pull force.

Applicable wire diameter:AWG#20—AWG#28

Production Capacity:1800 pieces per hour (depending on the product)

Cutting length:80mm-1300mm

Cutting accuracy:1mm + cutting length × less than 0.1%

Gutter width:0-6mm

Cramping capacity:2×2.0T

Size:4500*2200*1700(excluding protrusions)
