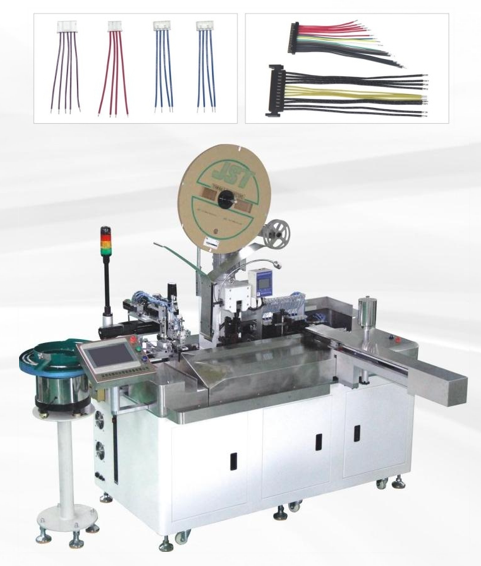

※ Utilizes the intelligent control system from Japan Keyence, along with servo motors, for precise, efficient and stable operation.

※ Features touch screen control for adjustments, including: wire length, stripping length, semi-stripping length, position of plug-in shell, depth of plug-in shell, file storage, etc., all can be completed in one click.

※ Utilizes advanced quality inspection system, terminal pressure management device, terminal insertion and extraction force detection, and CCD visual system detection.

※ Utilizes advanced fault detection system, which can automatically detect low air pressure, abnormal motor, abnormal belt, etc. When an anomaly occurs, it can automatically stop the machine and display the cause of the fault.

※ The best features are simple adjustment, short adjustment time, and can significantly reduce machine adjustment time.

※ The touch screen adjustment for the terminal position makes the pressing of the terminal more precise and stable.

※ It can quickly switch products in a short time.

Parameters

Power:AC 220V 50/60Hz (one phase)

Pressure force: 5-6 kgf (requires clean air)

Function:Wire cutting, one side stripping, two sides stripping, one side crimping, one side plug-in plastic housing, one side partial stripping, one side twisting, one side tin coating

Wire color:Corresponding to 12 colors (same specifications)

Quality detection:Pressure management system, CCD terminal appearance inspection system, creepage force detection, terminal pull force detection, presence of wires, wire connectors, presence of terminals, presence of sockets

Range of processable wires:AWG#30—AWG#18

Production Capacity：1800 pieces per hour (depending on the product)

Cutting length:45mm-3000mm

Cutting accuracy:1mm + cutting length × less than 0.1%

Gutter width:0-7mm

Pressing capacity:2.0T

Size:1900*920*1600mm(excluding protrusions)
