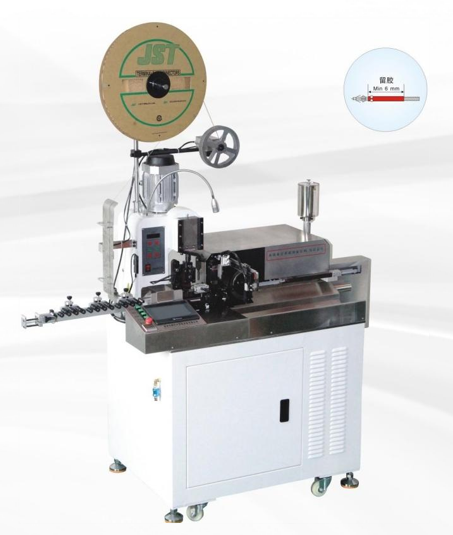

※ Utilizes the Japanese Panasonic control system and servo motors, providing precise, efficient and stable performance.

※ Adjustments can be made through a touch screen interface, including: wire length, stripping length, semi-stripping length, wire twisting tension, wire twisting length, soldering length, etc., all can be completed in one step.

※ Adopting an advanced fault removal system, it can automatically detect presence of whether the terminals are present, whether the copper wires are cut, whether the wire is present, whether the wire is knotted, low air pressure, abnormal motor, abnormal belt, etc. In case of an abnormality, it can automatically stop and display the cause of the fault, making it convenient and quick to troubleshoot.

※ The best feature is simple adjustment, short adjustment time, and can significantly reduce the machine adjustment time.

※ The touch screen allows for precise and stable adjustment of the pressing position.

Power supply:AC220V 50/60Hz( one phase)

Pressure force:5-6 kgf (requires clean air)

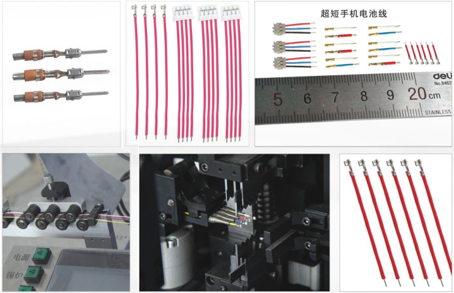

Function:Wire cutting, one side stripping, two sides stripping, one side crimping, one side partial stripping, one side twisting, one side tin coating

Range of processable wires:AWG#32—AWG#20

Production Capacity:6000 pieces per hour (depending on the product)

Cutting length:8mm - 1000mm (The processing length can be customized according to customer requirements)

Cutting accuracy:1mm + cutting length × less than 0.1%

Gutter width:0mm-7mm

Twist wire length:3mm-7mm

Length of tin coating:0.5-7mm

Size:1050*650*1200mm(excluding protrusions)
